Installation Guide

Quick Setup. Zero Hassle. Connects to Any Irrigation System.

EZ-FLO installs in under 30 minutes. No electricity required. No plumber needed. Just connect, fill, and start feeding your plants automatically.

How It Works

Mainline Multi-Zone Configuration

One tank feeds every zone. Automatic proportional dosing with each irrigation cycle.

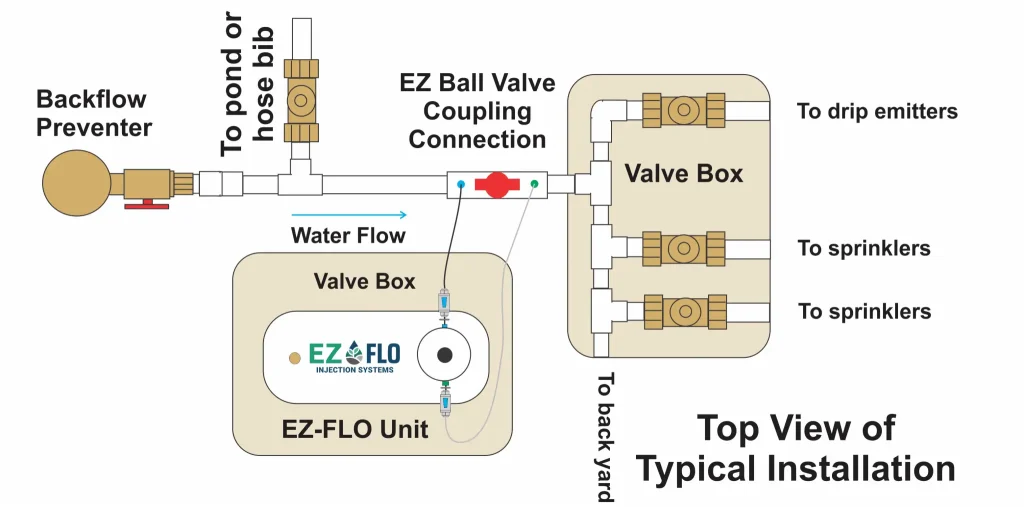

Diagram showing a top view of a typical EZ-FLO irrigation installation, with labeled connections to pond, hose bib, drip emitters, and sprinklers, featuring valve boxes and water flow direction.

One System. Every Zone. Automatic Feeding.

Your EZ-FLO tank connects to the mainline after your backflow preventer. When water flows, it picks up nutrients and delivers them to every zone downstream. No manual mixing. No electricity. No moving parts to fail. Just consistent fertigation every time your irrigation runs.

System Components

Everything You Need to Get Started

01

EZ-FLO Tank

Holds your liquid fertilizer and dispenses it proportionally with each watering cycle. Choose from 0.75 to 3+ gallon sizes for residential yards or commercial properties up to 20 acres.

02

Mainline Connection

Universal fittings connect to your existing irrigation pipe. Works with PVC, poly, and copper. Position after your backflow preventer for code compliance.

03

Backflow Preventer

Keeps fertilizer out of your water supply. Required by code in most areas. If you have irrigation, you likely already have one installed.

04

Zone Valves

Your existing irrigation valves work as-is. EZ-FLO feeds every zone downstream from the connection point. No valve modifications needed.

05

Flow Discs

Control your fertilizer concentration. Color-coded discs let you dial in the exact nutrient ratio your plants need. Swap in seconds to adjust.

06

Inlet/Outlet Tubing

Water flows through the tank, picks up nutrients, and returns to your mainline. High-quality tubing included with every system.

Watch It Done

Installation Videos

See exactly how fast and simple setup really is. Step-by-step visual guides for every system type.

6 Simple Steps

Install in Under 30 Minutes

Basic tools. No special skills. Follow these steps and start fertigation today.

01

Pick Your Spot

Install after the backflow preventer, before your zone valves. Choose a location with easy access for refilling.

02

Shut Off Water

Turn off the main supply. Open a valve to release pressure. Takes 30 seconds.

03

Connect the Lines

Attach inlet and outlet tubing to your mainline using the included fittings. Hand-tight connections. No special tools.

04

Select Your Flow Disc

Match the disc color to your desired concentration. Higher flow rate equals stronger nutrient mix.

05

Fill the Tank

Pour in your EZ-FLO fertilizer. One fill lasts 4-6 weeks for most residential systems.

06

Turn On and Test

Restore water pressure. Run one irrigation cycle. Check connections for leaks. Done.
